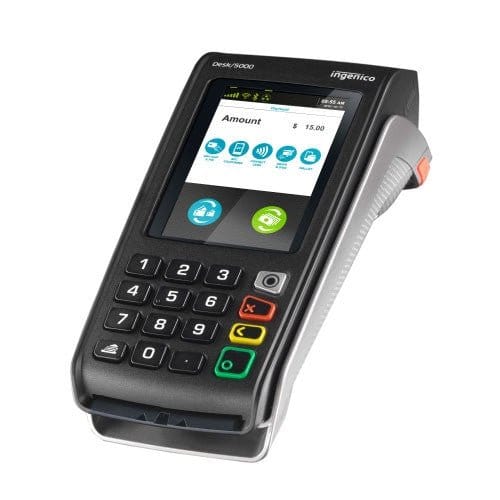

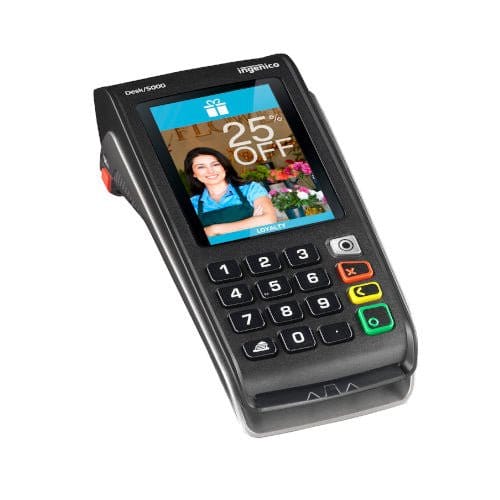

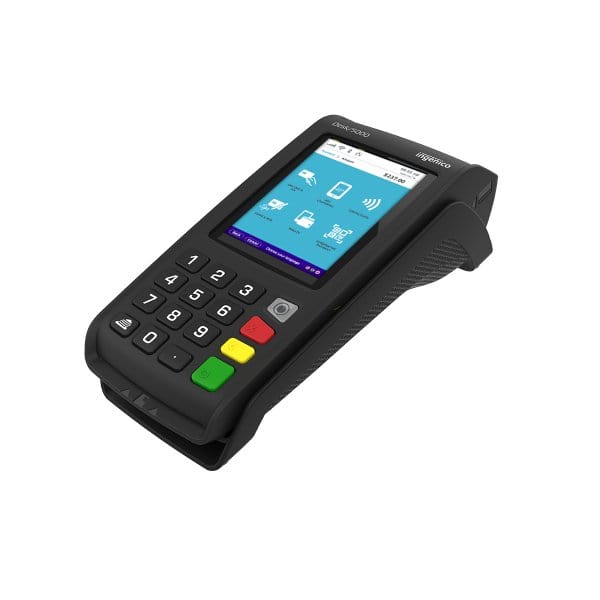

Ingenico Desk 5000 – Countertop Payment Terminal | 3.5" Touch, Serial, USB, Wi-Fi & Bluetooth (PCA30010369C)

$480.00
$480.00

The Ingenico Desk 5000 is a countertop terminal with a 3.5-inch color touchscreen and a 20 lines-per-second thermal printer. Running Telium TETRA on a Cortex A5 processor, it pairs dial-up and Ethernet with optional Wi-Fi and Bluetooth.

Specifications

Product Type Countertop payment terminal
SKU PCA30010369C
Operating System Telium TETRA
Processor Cortex A5
Memory 512 MB Flash, 512 MB RAM; microSD expansion up to 32 GB
Display 3.5" backlit color HVGA, 480 x 320
Touchscreen Resistive, finger and stylus, 300K signature lifespan
Keypad 16 backlit hard keys with raised marking
Card Readers Magstripe ISO 1/2/3 (500K lifespan), smart card EMV L1 (500K lifespan), contactless EMV L1
SAM Slots 2 SAM
Thermal Printer 20 lines per second; 58 mm paper roll, 40 mm diameter
Wired Connectivity Dial-up modem, Ethernet 10/100 Base-T
Wireless Connectivity Optional Wi-Fi and Bluetooth Class 2
Ports 1 USB host, 1 USB slave, 1 RS232 (2nd RS232 available), dedicated power jack
Audio Stereo audio jack, mono speaker
Video H.264 video accelerator
Power Supply 32 W
Dimensions 187 x 82 x 68 mm (7.3" x 3.2" x 2.6")
Weight 340 g (12 oz)
Operating Temperature 0 to 40 C (32 to 104 F)
Storage Temperature -20 to 55 C (-4 to 131 F)
Operating Humidity 85% non-condensing at 40 C
Security PCI PTS 5.x online and offline

Key Features

  • 3.5-inch color touchscreen with finger and stylus signature capture
  • PCI PTS 5.x certified for online and offline PIN
  • 20 lines-per-second thermal printer with 58 mm roll
  • Dial-up and Ethernet standard, Wi-Fi and Bluetooth optional
  • Dual RS232 and USB host/slave ports for POS integration
  • H.264 video acceleration for on-screen media
  • Card readers rated to 500,000 cycles

In the Box

  • Ingenico Desk 5000 terminal
  • 32 W power supply
  • Communication cable
  • Starter paper roll

Ideal For

Retail counters • Restaurants and bars • Pharmacies • Integrated POS environments
