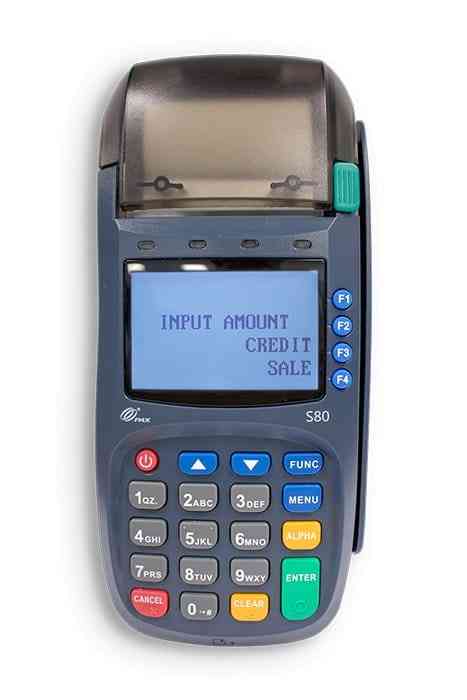

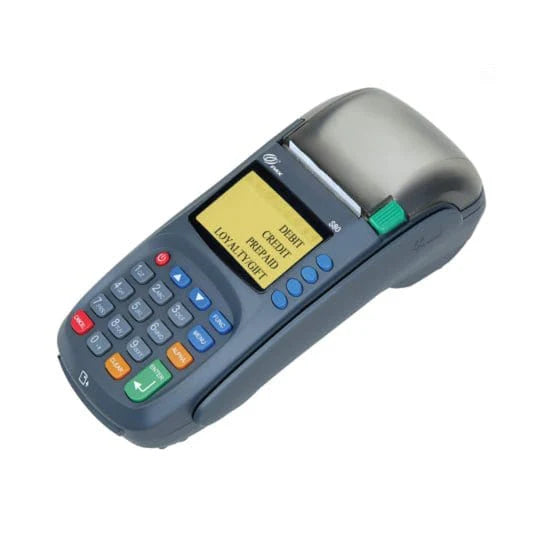

PAX S80 – Countertop Payment Terminal | Thermal Printer, NFC, Dial & Ethernet, Blue

$110.00
$110.00

A countertop payment terminal with an ATM-style interface, integrated 25 lps thermal printer and built-in contactless reader, supporting modem and optional Ethernet communication.

Specifications

Device Type Countertop payment terminal
Part Number S80M0L36403EA
Processor 32-bit ARM11
Memory 192 MB (128 MB flash, 64 MB SDRAM)
Display 128 x 64 pixel LCD, white backlit
Keypad 10 numeric/letter, 8 function, 4 ATM keys, 1 power key
Printer Thermal, 25 lines per second, 58 mm (2.25 in) paper roll
Magnetic Card Reader Tracks 1/2/3, bi-directional, ISO7812
Smart Card Reader 1 user card, EMV
Contactless Reader 13.56 MHz, ISO14443 Type A/B, Mifare, Felica, NFC, up to 4 cm
RF Indicators 4 (blue, yellow, green, red)
Card Slots 3 SAMs, ISO7816
Communication Modem sync HDLC to 9600bps, async V.92 to 56kbps, optional Ethernet
Peripheral Ports PIN pad, RS232, Ethernet, line, mini USB (OTG)
Security PCI PTS 3.x approved, DUKPT, Master/Session, DES, 3DES, ANSI/ISO9564 formats 0/1/3
Voltage Input 100-240 VAC 50/60 Hz 1.5 A, output 8.2 VDC 3 A
Dimensions 216 x 95 x 86 mm (8.5 x 3.74 x 3.39 in)
Weight 525 g
Color Blue
Condition Refurbished

Key Features

  • Built-in contactless reader supporting ISO14443 Type A/B, Mifare, Felica and NFC at up to 4cm
  • Four RF indicator lights guide the customer through the tap sequence
  • Thermal printer at 25 lines per second on standard 58mm rolls
  • Three SAM slots for multi-application and value-added deployments
  • Full peripheral port complement including PIN pad, RS232, Ethernet and mini USB
  • ATM-style interface and ergonomic keypad familiar to both staff and customers
  • PCI PTS approved with DUKPT, DES and 3DES key management

Compatibility

Modem communication standard with optional Ethernet. Supports connection of an external PIN pad such as the SP30.

In the Box

  • 1 x S80 terminal
  • 1 x Power supply
  • 1 x Starter paper roll

Ideal For

Retail stores • Restaurants and cafés • Convenience and service businesses • Countertop checkout
