PAX S80 – Countertop Payment Terminal, Refurbished, Black | Dial, Ethernet, EMV, NFC (S80M0L36403EA)

$120.00
$120.00

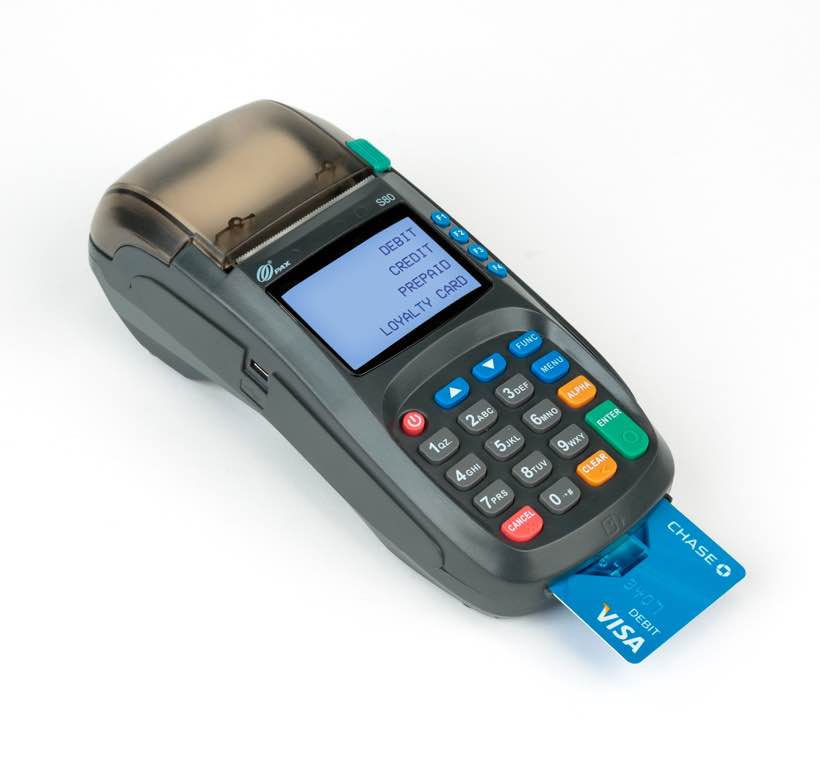

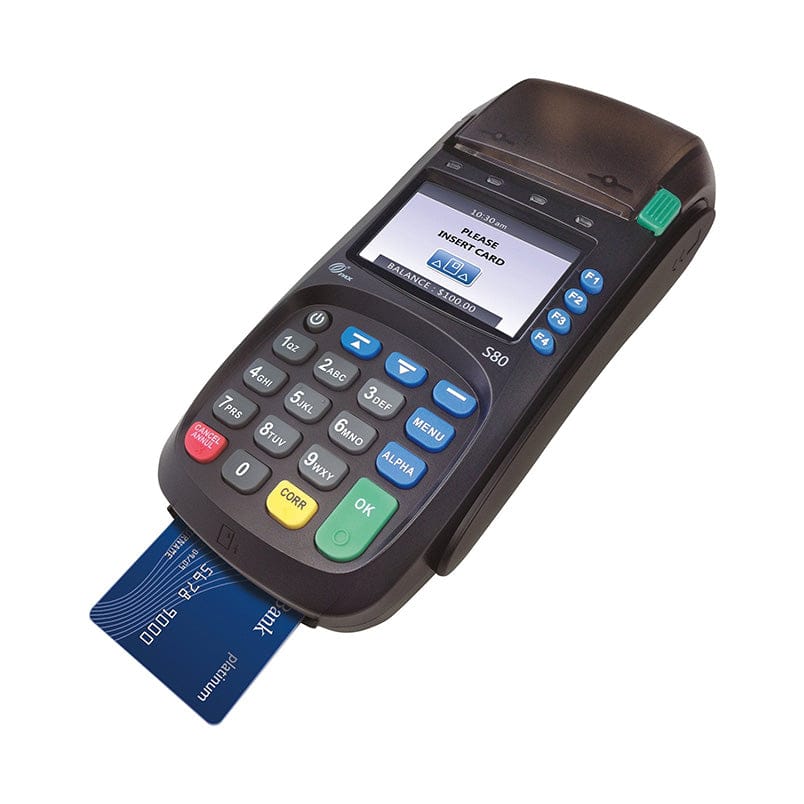

The PAX S80 is a countertop POS terminal with an ATM-style interface, ergonomic keypad and 25 lps thermal printer. This unit is refurbished. Multiple communication options and support for several payment applications make it a dependable low-cost countertop device.

Specifications

Product Type Countertop payment terminal
Condition Refurbished
Color Black
SKU S80M0L36403EA
Processor 32-bit ARM11
Memory 192 MB (128 MB Flash, 64 MB SDRAM)
Display 128 x 64 pixel LCD, white backlit
Keypad 10 numeric/letter keys, 8 function keys, 4 ATM keys, 1 power key
Printer Thermal, 25 lines per second; 58 mm (2.25") standard paper roll
Magnetic Card Reader Tracks 1/2/3, bi-directional, ISO 7812
Smart Card Reader 1 user card, EMV
Contactless Reader Built-in 13.56 MHz, ISO 14443 Type A/B, Mifare, Felica, NFC; up to 4 cm range; 4 RF indicators (blue, yellow, green, red)
Card Slots 3 SAMs, ISO 7816
Communication Modem - synchronous HDLC up to 9600 bps, asynchronous V.92 up to 56 kbps; Ethernet (optional)
Peripheral Ports 1 PIN pad, 1 RS232, 1 Ethernet, 1 line, 1 mini USB (OTG)
Security PCI PTS 3.x approved; DUKPT, Master/Session, DES, 3DES; ANSI/ISO 9564 format 0,1,3; ANSI X9.9 / X9.19 MAC
Voltage Input 100-240 V AC 50/60 Hz 1.5 A; output 8.2 V DC 3 A
Dimensions 216 mm L x 95 mm W x 86 mm H
Weight 525 g

Key Features

  • ATM-style interface and ergonomic keypad familiar to staff and customers
  • 25 lines-per-second thermal printer with 58 mm rolls
  • Built-in 13.56 MHz contactless reader with four RF status indicators
  • 3 SAM slots and a full set of peripheral ports for integration
  • PCI PTS 3.x approved with DUKPT and 3DES support
  • Modem standard with optional Ethernet
  • Supports multiple payment and value-added applications

In the Box

  • PAX S80 terminal (refurbished)
  • Power supply
  • Communication cable

Ideal For

Small retail • Restaurants and cafes • Service businesses • Cost-conscious terminal replacement
