PAX SK800 – 23.8" All-in-One Self-Service Kiosk | Anti-Vandal FHD, 4G, Printer, NFC
- Regular price
- $4,250.00
- Sale price
- $4,250.00
- Regular price
-
A self-service kiosk with a 23.8-inch anti-vandalism FHD touchscreen, hybrid card reader, NFC, integrated thermal printer and IP34 / IK07 protection, running PayDroid on Android 6.0.
Specifications
| Device Type | Self-service smart kiosk |
| Part Number | SK800-A5214-3301-EA |
| Display | 23.8 in IPS FHD 1920 x 1080 anti-vandalism touchscreen |
| Operating System | PayDroid powered by Android 6.0 |
| Processor | Cortex A17 |
| Memory | 16 GB eMMC flash + 2 GB DDR RAM, microSD to 128 GB |
| Card Readers | Hybrid chip & PIN + magnetic stripe, NFC contactless |
| Camera | 8 MP front facing |
| Printer | 75 lines/sec, 3.14 in outer roll diameter, optional auto cutter |
| Connectivity | 4G + Ethernet + Wi-Fi 2.4/5 GHz + Bluetooth 4.0 + Beacon |
| SIM/SAM | 1 micro SIM |
| Keys | 16 keys — 0-9, stop, correct, info, enter, up, down |
| Audio | 1 microphone, 2 speakers |
| Ports | Ethernet, RS232, RS485 half-duplex, HDMI, power, micro USB |
| Protection | IP34, IK07 |
| Security | PCI PTS 5.x, SRED |
| Dimensions | 37.99 x 15.35 x 6.89 in |
| Weight | 28.66 lb |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Humidity | 5-95% non-condensing |

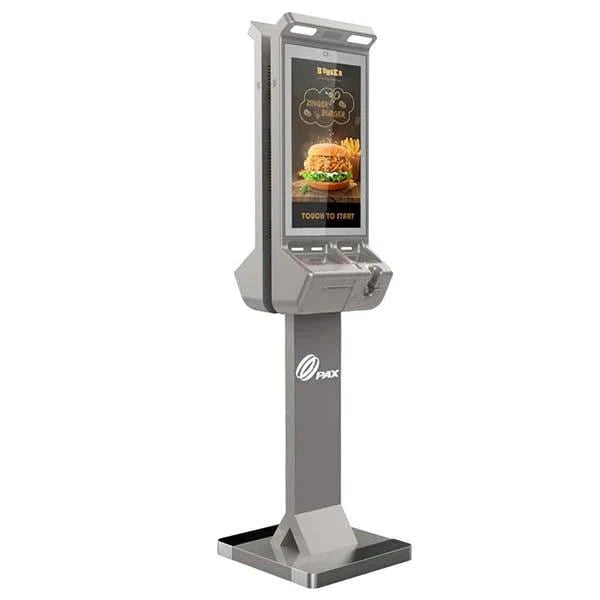

| Accessories | Standing base, optional fingerprint reader |
| Lifecycle | End of life |
Key Features
- 23.8-inch anti-vandalism FHD touchscreen built for unattended public deployment
- IP34 and IK07 protection against dust and impact
- Integrated thermal printer at 75 lines/sec with optional automatic cutter
- Hybrid chip & PIN plus magnetic stripe reader with NFC contactless
- Full port complement — Ethernet, RS232, RS485, HDMI and micro USB
- 4G, Ethernet, dual-band Wi-Fi, Bluetooth and Beacon connectivity
- PCI PTS 5.x with SRED certification
- Optional fingerprint scanner and standing base available
Compatibility
This model has reached end of life. Runs PayDroid on Android 6.0. Optional fingerprint reader and standing base available.
In the Box
- 1 x SK800 kiosk
- 1 x Power supply
- 1 x Starter paper roll
Ideal For
Restaurant self-ordering • Ticketing • Hospitality self-service • Entertainment venues
